View Force On A Current Carrying Wire Equation Pics. If the current is perpendicular to the magnetic field then the force is given by the simple product whey you have finished entering data, click on the quantity you wish to calculate in the active formula above. Sal derives the formula f=ilb to determine the force on a current carrying wire.

Force on a current carrying conductor placed in a magnetic ... from www.brainkart.com

The force on an individual the force on an individual conduction electron is fb = (−e) vd × b. Magnetic force on a current carrying wire. (a) if a constant magnetic field of magnitude is directed along.

Experiment 9 magnetic force on a current carrying wire.

(a) if a constant magnetic field of magnitude is directed along. In the text below we explain how can you estimate the force acting on a straight wire with about 1012 electrons moving through it. The quantities will not be forced to be consistent until you click on a choice. The total force will be the sum of the force on all the moving charges together.

Source: em.shawnzhong.com

If the current is perpendicular to the magnetic field then the force is given by the simple product whey you have finished entering data, click on the quantity you wish to calculate in the active formula above.

Source: i.ytimg.com

This produces a force on the wire/coil which moves the wire/coil.

Source: image.slideserve.com

The loop has 50 square turns that are 15.0 cm on a side and is.

Source: image.slidesharecdn.com

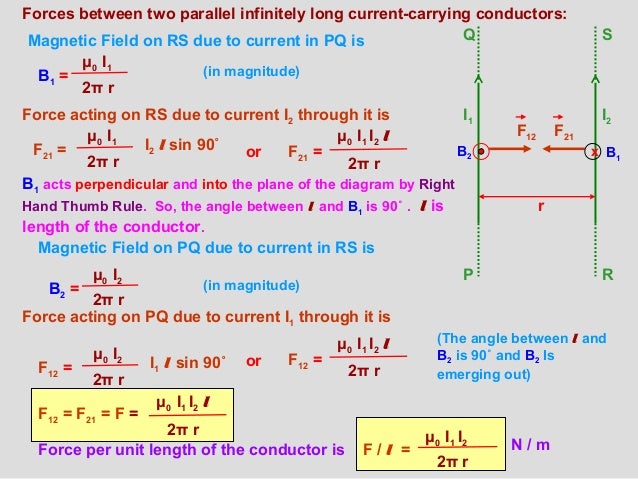

We can define dl to be a vector of length dl pointing along which allows us to rewrite this equation as.

Source: 3.bp.blogspot.com

(motors are a prime example—they employ loops of wire and are considered in the next section.) magnetohydrodynamics (mhd) is the technical name given to a clever application where magnetic.

Source: www.physicsbootcamp.org

This produces a force on the wire/coil which moves the wire/coil.

Source: image2.slideserve.com

This produces a force on the wire/coil which moves the wire/coil.

Source: s3-us-west-2.amazonaws.com

If the wire section happens to be straight and b is uniform, the equation differentials become absolute quantities.

Source: image2.slideserve.com

The magnitude and direction of this force depend on four variables:
